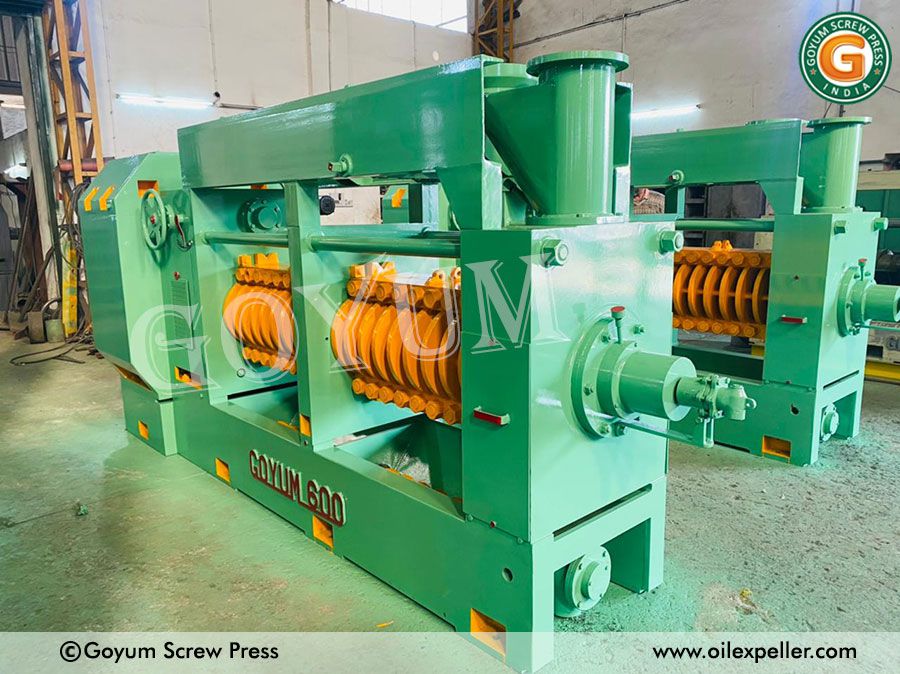

High Capacity Oil Press Machine
Model: GOYUM 600
Having a crushing capacity of 30 tons/day, a high-quality oil press, Goyum 600 has a simple and symmetrical shape. It features durability, low maintenance and compact design, made from high-quality materials in line with modern technologies, these enhanced features allow it to deliver better extraction results and high-quality oil.
GOYUM 600 Mechanical Screw Press is suitable for single press or pre-press used in medium-scale vegetable oil extraction plants. It is specifically designed for continuous pressing of oilseeds such as sunflower seed, rapeseed, sesame, maize germ, flax seed, jatropha seeds, etc. The model is also suitable for continuous 24-hour operation.
The extremely sturdy construction promises a long service life even in the most adverse conditions, which is why hundreds of customers around the world have relied on this proven model for years and decades.
Features of High Capacity Oil Press
- This model has been designed in a simple and symmetrical shape.
- Mild Steel Fabricated Bodies and Base.
- Triple Reduction Gear Box with Cast Steel Helical Gears and Special Steel Pinion Shafts.
- Chambers are Vertically Fitted.
- This Expeller has Two Chambers made of Cast Steel. Feed Size: Ø 9″ x 36″ Long, Discharge Size: Ø 8″ x 36″ Long.
- Hard Faced Worm Assembly, Discharge Ring and Sliding Ring.
- Main Worm Shaft can be withdrawn without disturbing the Gear Box.
- The Shaft is Water Cooled.
- Crammer Shaft for Extra Cramming of the Seed or Cake is fitted on the Feed Body and is driven by 3 HP Geared Motor.
- Cake Thickness can be Adjusted on Running Machine.
- Gear Box is aligned with the body on a single fabricated base.
- Superior quality of Oil & Cake.
- Low Maintenance.
Technical Specification of High Capacity Oil Press
| Model | Capacity | Power | Length | Breadth | Height | Weight |
|---|---|---|---|---|---|---|
| GOYUM 600 | 40 – 45 TPD* in Pre-pressing, 30 – 35 TPD* in Single & Final Crushing | 3 Phase, 100 HP, 1440 RPM | 13’10” | 3’10 | 6’6″ | 11500 Kgs |
Features of Cooking Kettle
- Kettle: 4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe fitting contains Safety Valve, Steam Spray Pipe, Pressure Gauge Steam Valves & Steam Traps.
- Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers.
- Kettle is supported separately on a fabricated structure.
- Proper & Evenly Cooking of the Seed for maximum extraction of the Oil.
- Low Power Consumption.
Technical Specification of Cooking Kettle
Model
Power
Length
Breadth
Height Weight
Cooker/Kettle
3 Phase, 20 HP, 1440 RPM
5’6″
5’6″
10’2″
3300 Kgs
- Kettle: 4 Stages with Steam Jackets of Ø 60” for efficient cooking of Seed. Pipe fitting contains Safety Valve, Steam Spray Pipe, Pressure Gauge Steam Valves & Steam Traps.
- Exhaust Fan is also provided to extract excess steam or moisture from cooking chambers.
- Kettle is supported separately on a fabricated structure.
- Proper & Evenly Cooking of the Seed for maximum extraction of the Oil.
- Low Power Consumption.
| Model | Power | Length | Breadth | Height | Weight |
|---|---|---|---|---|---|
| Cooker/Kettle | 3 Phase, 20 HP, 1440 RPM | 5’6″ | 5’6″ | 10’2″ | 3300 Kgs |
*(TPD stand for Ton Per Day (in 24 Hours) of oilseed Crushing Capacity. Further crushing capacity may differ with the density of oilseeds & nuts and quantity of oil in it.)
