Niger Seed Oil Mill Plant

GOYUM is a professional oil mill machinery manufacturer that is dedicated to the research and development of environmentally friendly oil processing equipment, ranging from small scale to large scale.

Ethiopia and India are the major niger seed producing countries of the world. It is also minor oil crop in Kenya, Uganda, Sudan, Malawi and other African countries.

Our Installation : Complete Niger Seed Oil Extraction Plant

fully automatic niger seed oil extraction plant installed in Ethiopia, Africa

If you are interested in starting an oil extraction plant for Niger Seed Oil Processing Plant, please do not hesitate to contact us.

Machinery & Equipment required to setup Niger Seed Oil Mill Plant

Here we have listed some of the basic machinery required for Niger Seed Oil Mill Plant

  • Seed Cleaner
  • Cooking Kettle / Conditioner
  • Oil Expeller / Oil Press
  • Filter Press with Pump
  • Steam Boiler
  • Bucket Elevator
  • Screw Conveyor
  • Oil storage tanks
  • Control Panel

Niger Seed Oil Mill Plant Process

In the niger seed oil mill, the seed undergoes the following steps: seed cleaning, cooking, oil extraction, oil filtration, oil storage and filling.

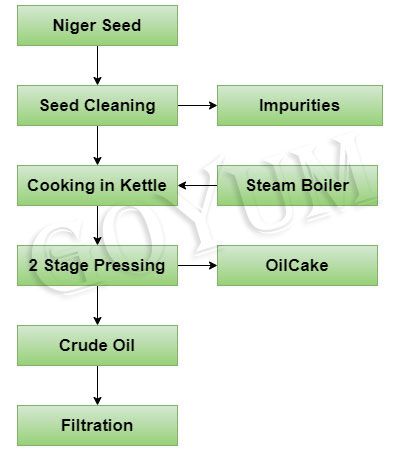

Neem Seed Oil Mill Plant Process Flowchart
Niger Seed Oil Extraction Plant

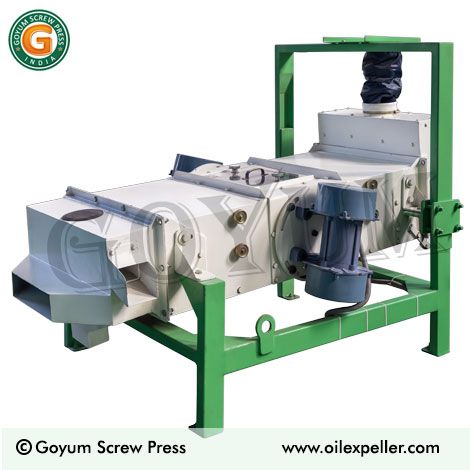

Seed Cleaner

Seed Cleaner is an ideal choice for removing external material like trash, stones, clods, stones etc.

We offer a multi-deck Seed Cleaning Machine which is manufactured at our technically advanced production unit using superior quality components under the guidance of our team.

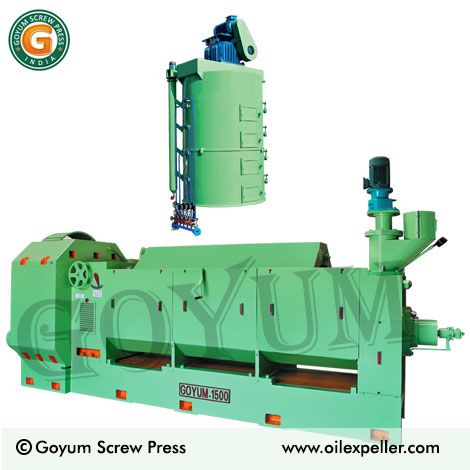

Oil Press With Kettle

The Niger seed contains 40 – 45 % oil content and double pressing is required to extract maximum oil, 9 – 11 % residual oil is left in the Niger meal which is an excellent source of Animal Feed.

The Niger Seeds are conditioned using Steam in a Vertical Cooking Kettle.

Under the condition of high pressure in the chamber, the friction between the material and the pressing screw is very large, which causes the friction between the material and the embryo, and causes the relative movement. On the other side, the diameter of the screw is gradually increased, and when the screw is rotated, the thread can cause the embryo to push forward and turn outwards. At the same time, the material layer close to the surface of the screw thread rotates with the pressing shaft, so that each particle in the pressing chamber is not in the same direction with the same speed, and the relative motion exists between the particles.

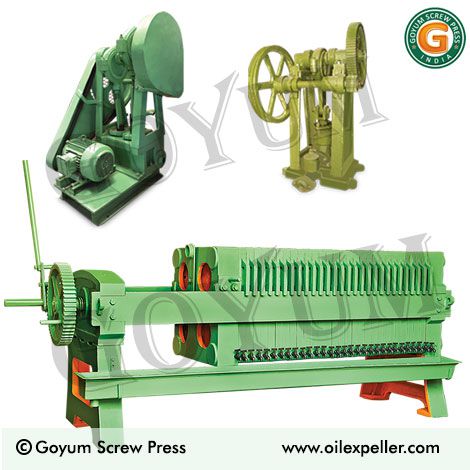

Filter Press with Pump

A filter press is a piece of equipment that separates solids from crude rapeseed oil.

After extraction, crude niger oil moves into an oil tank as it contains foots which is removed by the filter press.

GOYUM is engaged in offering a wide range of oil filter machines to our valued customers. Characterized by convenient operation, stable technical effect, high capacity and low impurity, the oil filter press we designed is to give maximum filtration efficiency, with longer life and least maintenance.

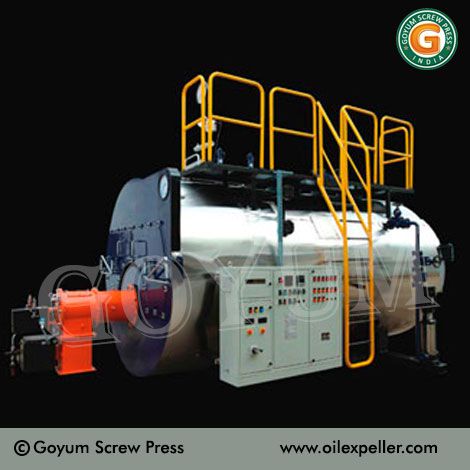

Steam Boiler

Steam boiler is used for generating steam by burning the fuels. The steam in the boiler supplies using a pipe-line into the cooking kettle for conditioning.

We provide both Vertical & Horizontal Multi Tubular Shell Type Smoke Tube Boilers. The main components of this boiler mainly include coal, shells, husks, wood or other agricultural waste, Furnace Oil, Diesel, Gas, etc.

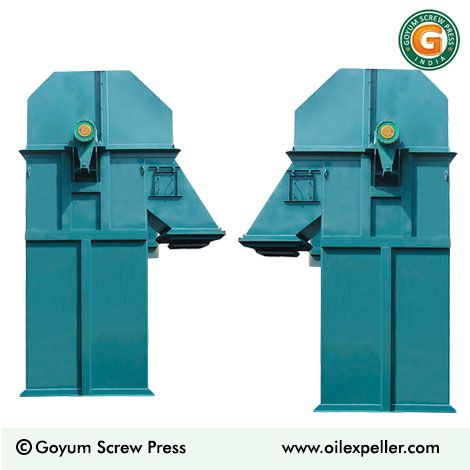

Bucket Elevator

Bucket Elevators are used to elevate bulk materials vertically.

We offer a variety of Belt and Chain Type Bucket Elevators which is specifically designed for handling raw materials.

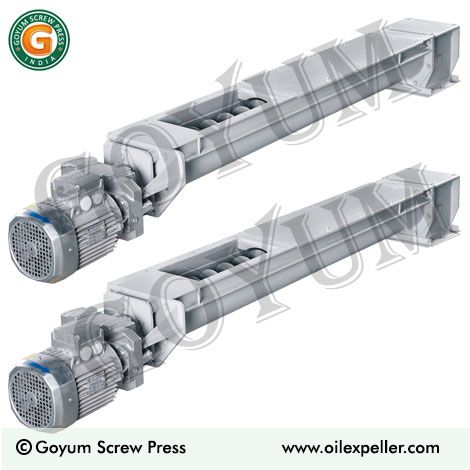

Screw Conveyor

screw conveyor for niger oil extraction plant

Screw conveyors are used to transferring raw materials from storage silos to oil mill equipment or vice versa.

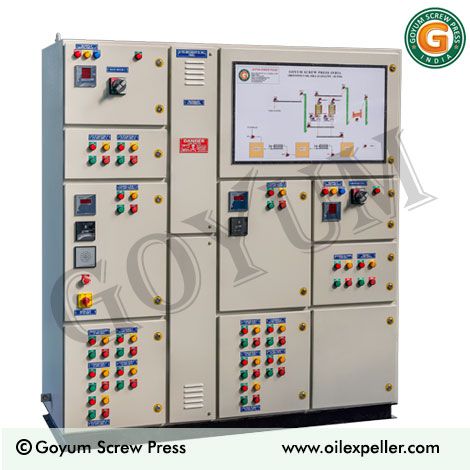

Control Panel

control panel to start niger oil mill machinery & equipment

We provide Motor Control Center (MCC) panels designed for distribution of power, main incoming and motor control panels. These MCC panels are designed with utmost care and stringent quality inspection to ensure client satisfaction. Manufactured using the finest raw materials, these Motor Control Centers are widely used in various electronic applications. Modular design of our motor control centers are designed to deliver dependable service for years.

Niger Seed Oil Extraction Plant Setup Cost

The cost of a Niger Seed Oil Mill Plant depends on different factors such as Plant Capacity, Selection of equipments, automation process, etc. Please don’t hesitate to contact us so that we can provide you the best solution for your requirement.

Are You Looking to Start a New Niger Seed Oil Production Line or Further Expansion?

The Niger Seed Oil Production Plant offered by GOYUM is robust, versatile, reliable and efficient. This Niger Seed Oil Production Plant is based on practically proven technology which is not only energy efficient & environment friendly, but also economical.
