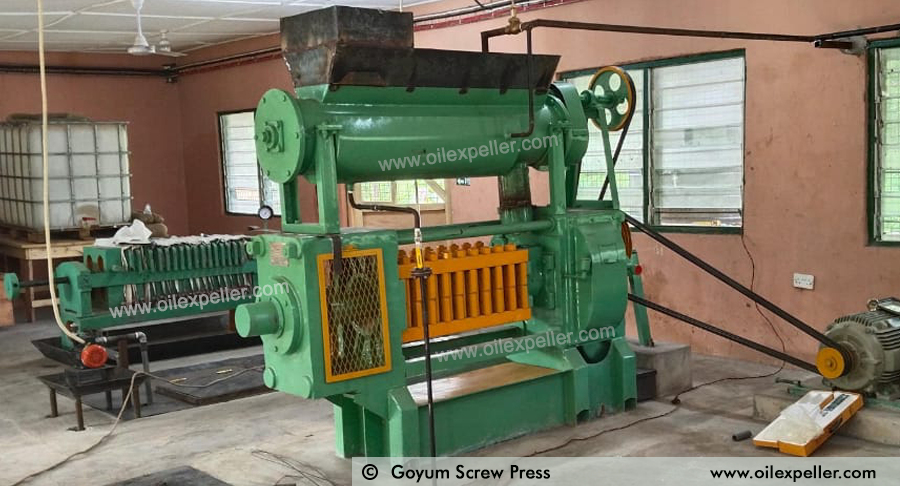

Copra Oil Press Machine

Copra screw oil press is an essential part in the coconut oil extraction plant. If you are thinking to start a coconut oil business and want to purchase high quality coconut oil extraction machine for small to large scale coconut oil production plant, you are in the right place! Buy copra oil press machine directly from the manufacturer.

Enquiry Now

For manufacturing coconut oil, we provide you various different capacities of copra oil press machines. We have the small scale oil press to large scale oil press machines.

Small Scale Copra Oil Press Machine

It is widely used in small sized coconut oil factories, due to its features of small in size and efficient production.

Production Output : 2 – 3 ton per day
Single Reduction Gear Box with Spur Gears.
Fabricated chamber size : 24″ long x 4″ Diameter.
Case hardened worm assembly.
Chamber size 4″ x 24″ Long

Enquiry Now

Medium Scale Coconut Oil Press Machine

This screw press is featured of high oil yield and ideal for medium scale oil mill plant and new entrepreneur.

Production Output: 12- 15 tonnes per 24 Hours
Chamber Size 44″ X Ø7″ Long.
Double Reduction Gear Box of Cast Iron Body and Mild Steel Fabricated Gears.
Case Hardened Worm Assembly and Cone Point.
Steel Fabricated Base.

Enquiry Now

Large Scale Copra Oil Press Machine

This machine is the best choice for large scale copra oil mill plant

Production Output: 45 – 125 ton per day
This model has been designed in a simple and symmetrical shape.
Triple Reduction Gear Box with helical gears of cast steel and pinion shafts of special steel.
Worm Assembly, discharge ring, Sliding ring are all hard faced.

Enquiry Now

Technical Details about some of our Screw Oil Press:

Model	Capacity	Power (HP)		Length	Breadth	Height
Model	Capacity	Expeller Motor	Kettle Motor	Length	Breadth	Height
GOYUM 60	5 – 6 Ton per 24 Hours	3 Phase, 20 HP, 960 RPM	–	8’12”	2’11”	6’12”
GOYUM MK-III	8 – 10 Ton per 24 Hours	3 Phase, 30 HP, 1440 RPM	–	8’6″	4’1″	8’8″
GOYUM MK-IV	12 – 15 Ton per 24 Hours	3 Phase, 50 HP, 1440 RPM	3 Phase, 5 HP, 1440 RPM	8’8″	4’6″	9′
GOYUM 150	15 – 17 Ton per 24 Hours	3 Phase, 40 HP, 1440 RPM	3 Phase, 7.5 HP, 1440 RPM	8’6″	4’7″	13′
GOYUM MK-V-C	18 – 20 Ton per 24 Hours	3 Phase, 50 HP, 1440 RPM	3 Phase, 5 HP, 1440 RPM	11’8″	4’3″	11’10”
GOYUM 240	22 – 25 Ton per 24 Hours	3 Phase, 75 HP, 1440 RPM	3 Phase, 5 HP, 1440 RPM	10’2″	4’1″	7’7″
GOYUM 600	30 – 45 Ton per 24 Hours	3 Phase, 100 HP, 1440 RPM	3 Phase, 20 HP, 1440 RPM	14’	5’6”	16’6”
GOYUM 1500	45 – 125 Ton per 24 Hours	3 Phase, 150 HP, 1440 RPM	3 Phase, 25 HP, 1440 RPM	30’	11’6”	19’6”
GOYUM 2400	230 – 250 Ton per 24 Hours	3 Phase, 250 HP, 1440 RPM	3 Phase, 50 HP, 1440 RPM	31’	7’4”	23’6”

Note: The above mentioned Capacity Range includes single pressing as well as pre-pressing. Further capacity differs as per the oil content and density of oilseeds and nuts too.

Are you looking for the most suitable and cost effective Copra Oil Press Machine or Copra Oil Mill Plant to start your own Coconut Oil Manufacturing Business, then you are in the right place. GOYUM is the best and reliable manufacturer, exporter and supplier of oilseed crushing machines.

Please fill the below Enquire Now Form so that we can contact and provide you the best solution for your requirement.
