Corn / Maize Germ Oil Mill Plant

Generally Fat content in Corn ranges between 3.6% and 5.7%. The fat of Corn Kernel concentrated mainly in germ. A study showed that corn consists of 11.5% germ with an average oil content of 34.8%

Corn / Maize germ is produced as a by-product of the Corn / Maize milling industries. There are 2 types of Corn / Maize milling, either Wet Milling or Dry Milling.

In wet-milling industries, starch and its product, corn syrup, dextrose dextrin etc are the principal products. In Dry milling Corn / Maize Flour is the main product.

Oil content of Corn / Maize germ produced by Wet Milling is as high as 50% and that by Dry Milling is about 25%.

We undertake turnkey project solutions for the complete Corn / Maize-Germ Oil Extraction Plant.

Major Corn producing countries are USA, China, Brazil, Argentina, Mexico, Ukraine, India, Indonesia, Russia, Canada, France and Romania.

If you are interested in establishing an oil extraction plant, please contact us and we will send you the most suitable machines and equipment list with the latest price. Just feel free to contact us!

Corn Maize Germ Oil Mill Plant

Machinery & Equipment required to Setup Corn Germ Oil Mill Plant

Here we have listed some of the basic machinery required for Corn Germ Oil Mill Plant including

  • Seed Cleaner
  • Oil Expeller / Oil Press
  • Filter Press with Pump
  • Steam Boiler
  • Bucket Elevator
  • Screw Conveyor
  • Oil storage tanks
  • Control Panel

Corn Germ Oil Mill Plant Process

There are various processes involved in Corn Germ Oil Mill Plant: Seed Cleaning, Seed Conditioning, Oil Extraction, Oil Filtration and Oil Filling

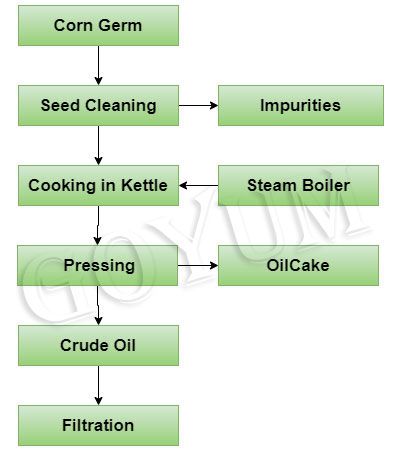

Corn Germ Oil Extraction Plant Process Flowchart
corn germ oil extraction plant process flowchart

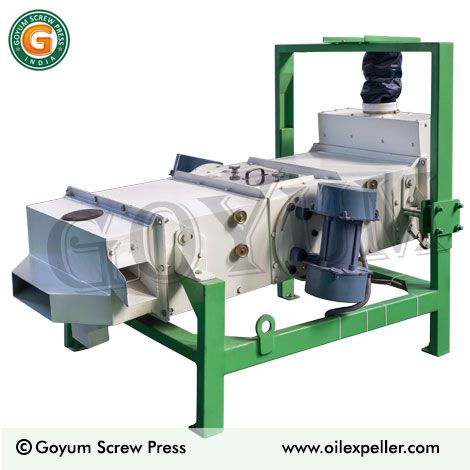

Seed Cleaner

Seed Cleaner is an effective equipment designed to effectively remove foreign material from the corn germ.

We offer a Multi-deck vibrating type Seed Cleaner complete with Aspiration System and dust collection box. It is available in various sizes and capacities that best suit the requirements of our customers.

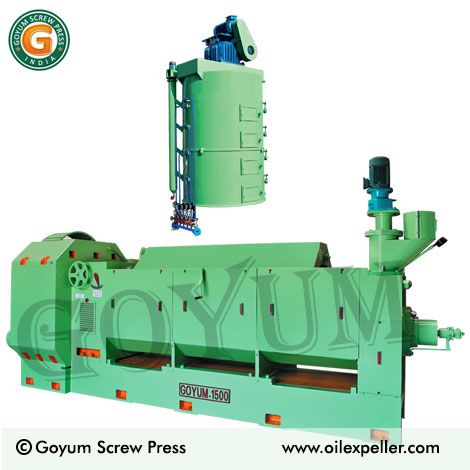

Oil Expeller / Oil Press

Oil content of Corn / Maize germ produced by Wet Milling is as high as 50% and that by Dry Milling is about 25%.

2 Stage pressing is required for wet milled corn germ and single stage pressing is required for dry milled corn germ. About 8 – 10 % residual oil is left in the corn meal which is an excellent source of Animal Feed.

The Corn Germ are conditioned using Steam in a Vertical Cooking Kettle.

The conditioned Corn Germ is fed into the chamber. A screw rotates inside the chamber which increases the pressure by reducing the length of the screw pitch in the direction of axial motion. The gradually increasing pressure to extract the oil that exits through the slot provided on the chamber while the pressed cake continues to move towards a discharge in the direction of the shaft.

Filter Press with Pump

Crude Corn oil moves into an oil tank as it contains 5 ~ 6% suspended particles which is removed by the filter press.

GOYUM is an expert in liquid and solid separation and offers a wide range of plate, plate & frame type filter presses with different capacities to suit specific application needs for trouble-free operation.

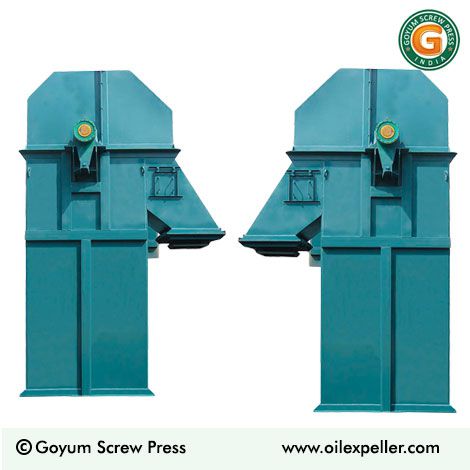

Bucket Elevator

bucket elevator for corn germ oil mill plant

Bucket elevator is the most suitable equipment to transport cashew nut shells vertically, without damaging them. A bucket elevator consists of a chain of buckets attached to a belt or chain, with pulleys located above and below the unit.

GOYUM designs and manufactures a wide variety of bucket elevators based on bulk raw material characteristics and process requirements.

Screw Conveyor

Screw conveyors are used for conveying raw material in oil mill equipment with the use of rotating helical screw blades also known as augers.

We supply a standard and custom configuration Screw conveyor to meet the needs of your process. MS or SS construction, U-trough type casing with top cover, screw flight welded to the pipe and with the necessary shaft, hanger bearings etc.

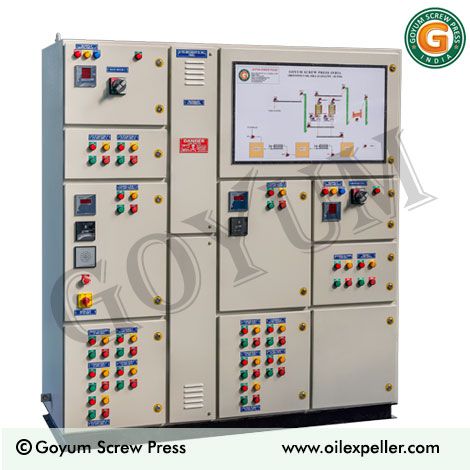

Control Panel

control panel to start corn germ oil mill machinery & equipment

We provide Motor Control Center (MCC) panels designed for distribution of power, main incoming and motor control panels. These MCC panels are designed with utmost care and stringent quality inspection to ensure client satisfaction.

Working Video of Corn Germ Oil Extraction Plant

Corn Germ Oil Extraction Plant Setup Cost

The cost of a Corn Germ Oil Mill Plant depends on different factors such as Plant Capacity, Selection of equipments, automation process, etc. Please don’t hesitate to contact us so that we can provide you the best solution for your requirement.

Are You Looking to Start a New Corn Germ Oil Production Line or Further Expansion?

The Corn Germ Oil Production Plant offered by GOYUM is robust, versatile, reliable and efficient. This Corn Germ Oil Production Plant is based on practically proven technology which is not only energy efficient & environment friendly, but also economical.
